36V DC Brushless Vibration Motor 60W Variable Speed V24022
36V DC Brushless Vibration Motor 60W Variable Speed V24022
Brushless vibration motor is energy-efficient and efficient. The power saving rate is 40-60% of ordinary motors. It has a long life and 5 times longer life than ordinary motors.
Regulator positioning is accurate and rapid, analog quantity.
Highly light, resistant to deformation and oxidation. Can withstand long-term high-speed operation.

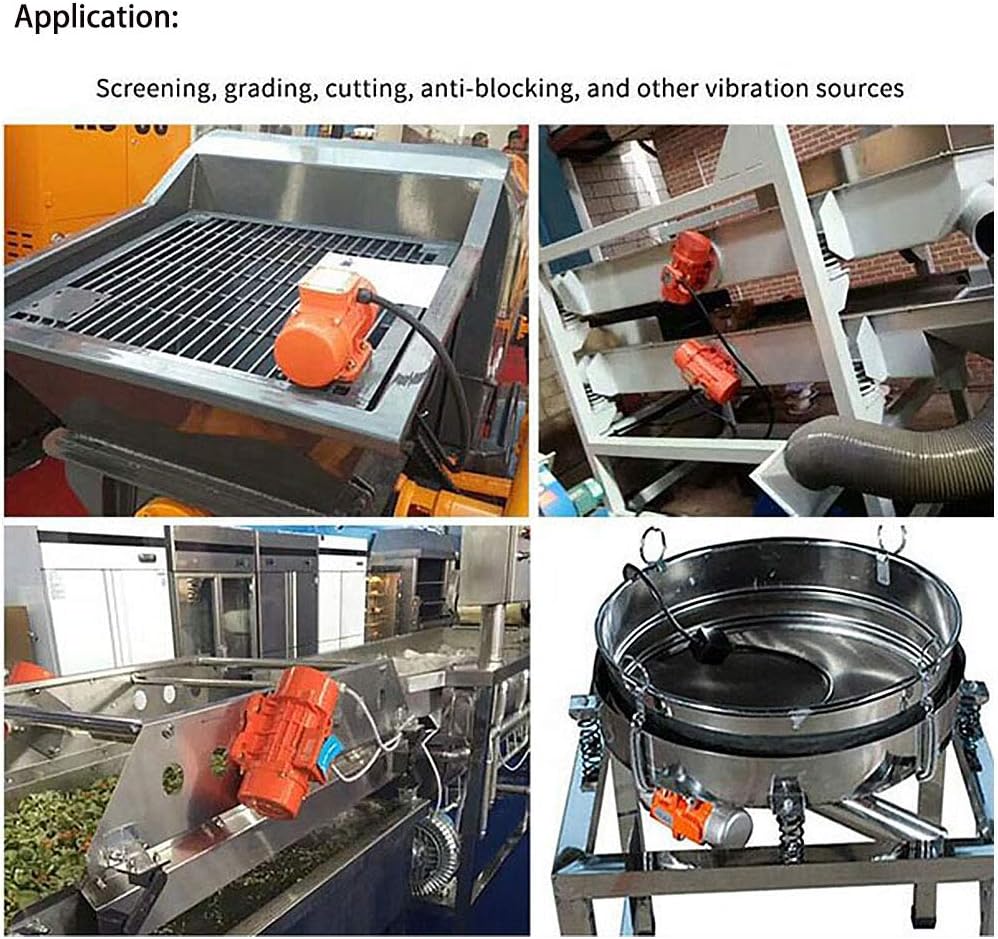

Widely applied in Mining, metallurgy, electricity, construction,coal, chemicals, medical equipment, food machinery, etc.
Special voltage and speed can be customized.If you are not sure about the size or have any issue about the product or service, please don't hesitate to email us. We will answer you winth 12h

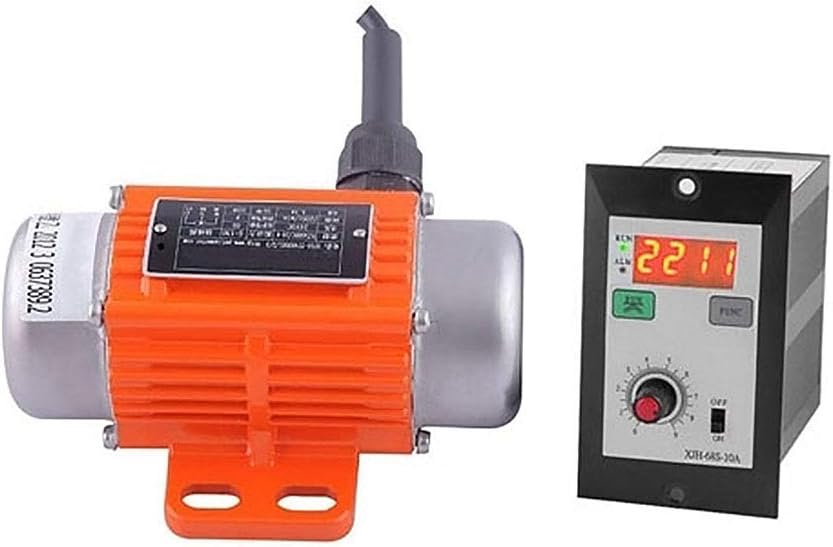

ATO 60W/70W DC brushless vibration motor,36V, rated speed of 7700rpm, with speed digital speed display controller andeasy to use.Aluminum alloy material, water and oil proof. High efficiency andlow noise, with function of overload andstop protection.
Can be widely applied in Mining,metallurgy, electricity, construction,coal, chemicals, medical equipment, food machinery, etc.
special voltage and speed can becustomized.

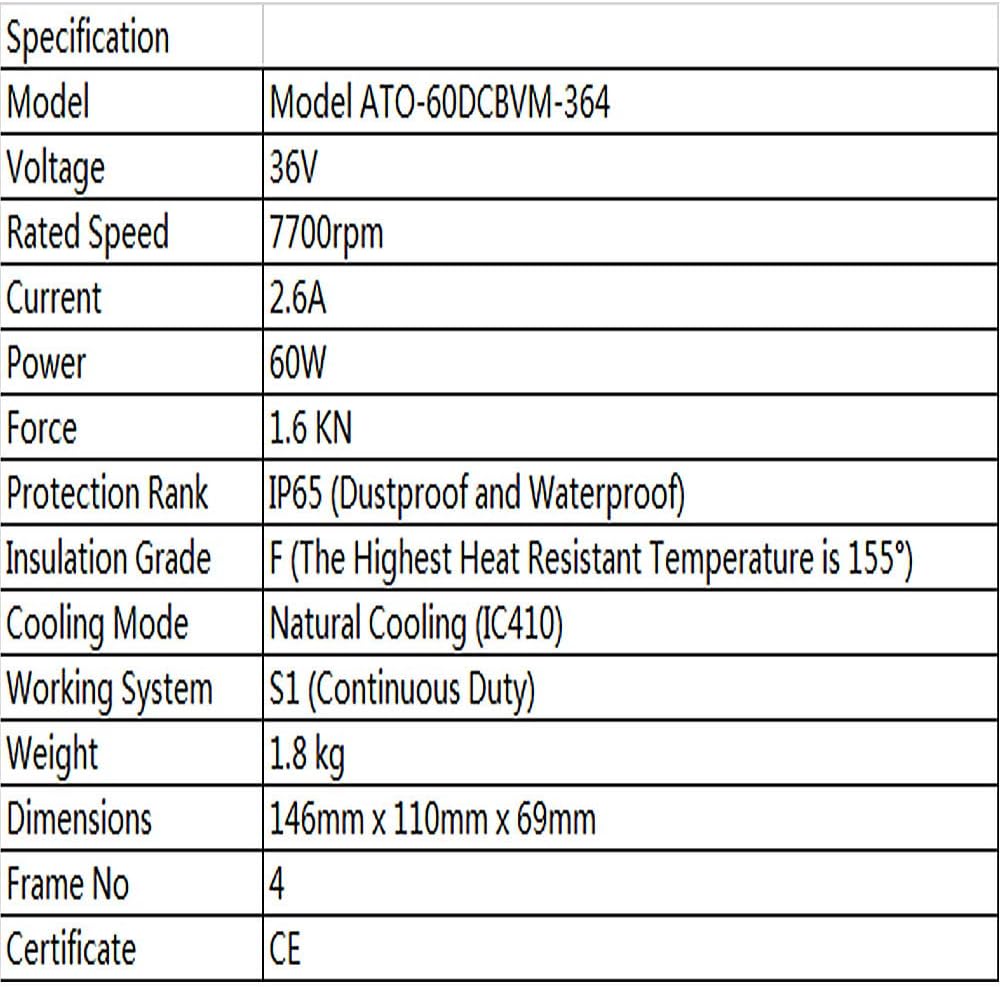

Specification :
Voltage 36V
Rated Speed 7700rpm
Current 2.6A 2.8A
Power 60W 70W
Force 1.6KN 2KG
Protection Rank IP65 (Dustproof and Waterproof)
Insulation Grade F (The Highest Heat Resistant Temperature is 155°)
Cooling Mode Natural Cooling (IC410)
Working System S1 (Continuous Duty)
Weight 1.8kg

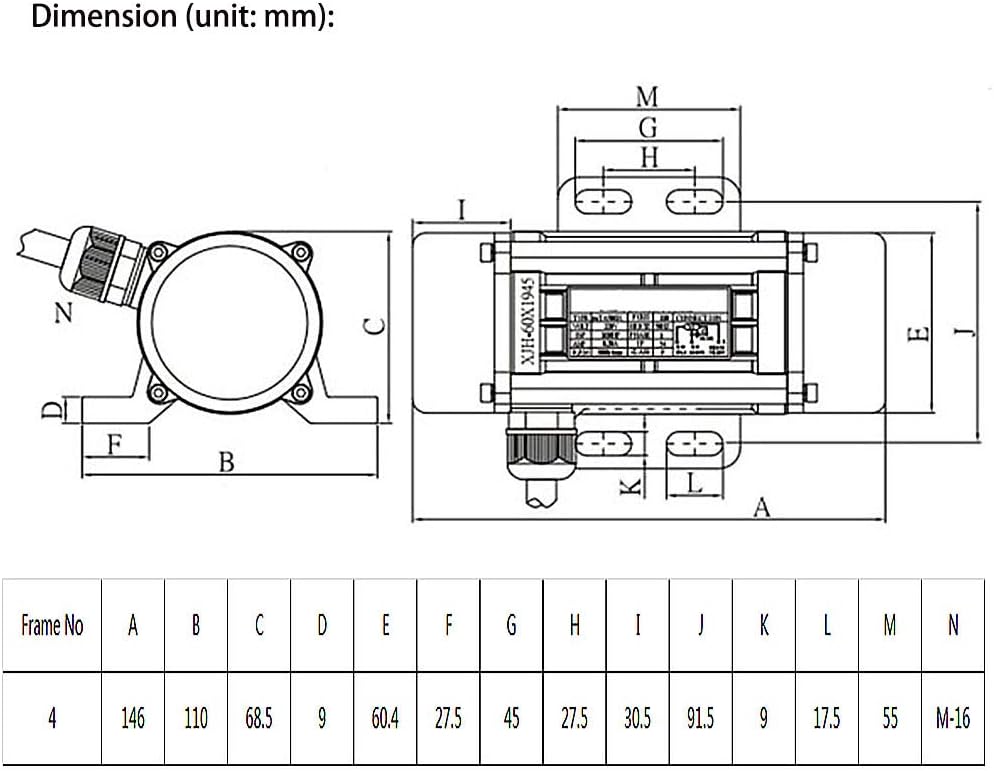

Dimensions 146mmx 110mm x 69mm
Frame No 4
Certificate CE
